Flexible Light Drop Anti Theft Safety Wire Mesh Stainless Steel Rope Net Bag

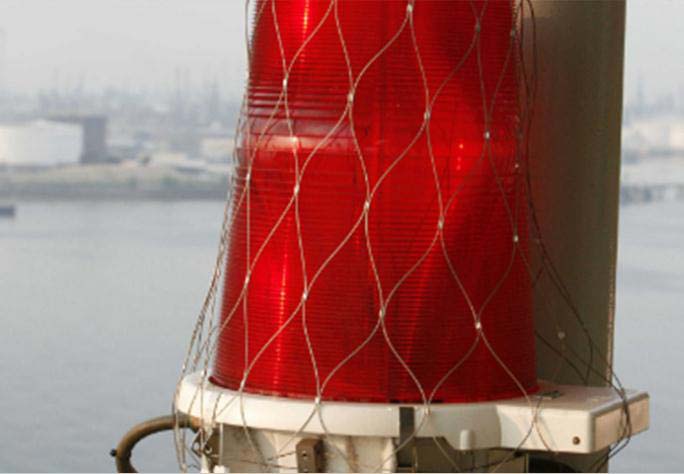

Stainless steel rope mesh pocket is mainly used for bag anti-cutting and anti-theft, bridge ship chandelier fall prevention, high-altitude fall-prone device protection, loading heavy objects, etc.. Its high strength flexibility and tensile strength, can be loaded with goods for comprehensive protection.
Details:
Material : Stainless steel 304, type 304 L, type 316, type 316L.
It is rhombus mesh, has excellent flexible performance,
virtually indestructible, mostbreaking resistant force,
most resisting rain, snow, hurricane.
As the material is virtually indestructible stainless steel, then it can be safely contain any species on
land, in the air indoors or out.
No matter how large, how small, or how cunning you specimens are, we assure their
complete security.
Advantages :
Stainless Steel Flexible Cable Rope Diamond Ferruled Mesh has characteristic property and capacity to replace other steel wire mesh in certain application.Sometimes better.
- Unique design idea.3D-structure,Flexible,elegant,discreet,filigreed,multifuncational.
- Light weight,High open area % .
- Corrosion resistant,allows strongh airflow.
- Total pro-environment,recyclable,no toxic,non flammable.
- Maintenaance free,don't ask any special cleaning & coating.
- At least 10 years guaranteed.
| Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | | | | |
| 25 x 42mm | YT-1225 | YT-1625 | | | |
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | | |
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | | |
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Mesh Orientation There are two orientations : Horizontal & Knotted .
