High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

  • 1
  • 2

Brand Name : YUNTONG

Model Number : YT-F 2060

Certification : CE

Place of Origin : China

MOQ : 5 m2

Price : USD 9-30/ m2

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000m2/week

Delivery Time : 5-8 days

Packaging Details : wooden case

Material : SUS 304 SUS 316

wire diameter : 1.5mm 2.0 mm 2.5mm 3.0mm 4.0mm

size of hole : 25*25mm -300*300mm

cable structures : 7*7 7*19

mesh type : ferrule mesh

height : customized

width : custommized

use : protective, Fall prevention

Contact Now

High Tensile Stainless Steel Woven Rope Mesh with Excellent Flexibility for Architectural Safety Protection

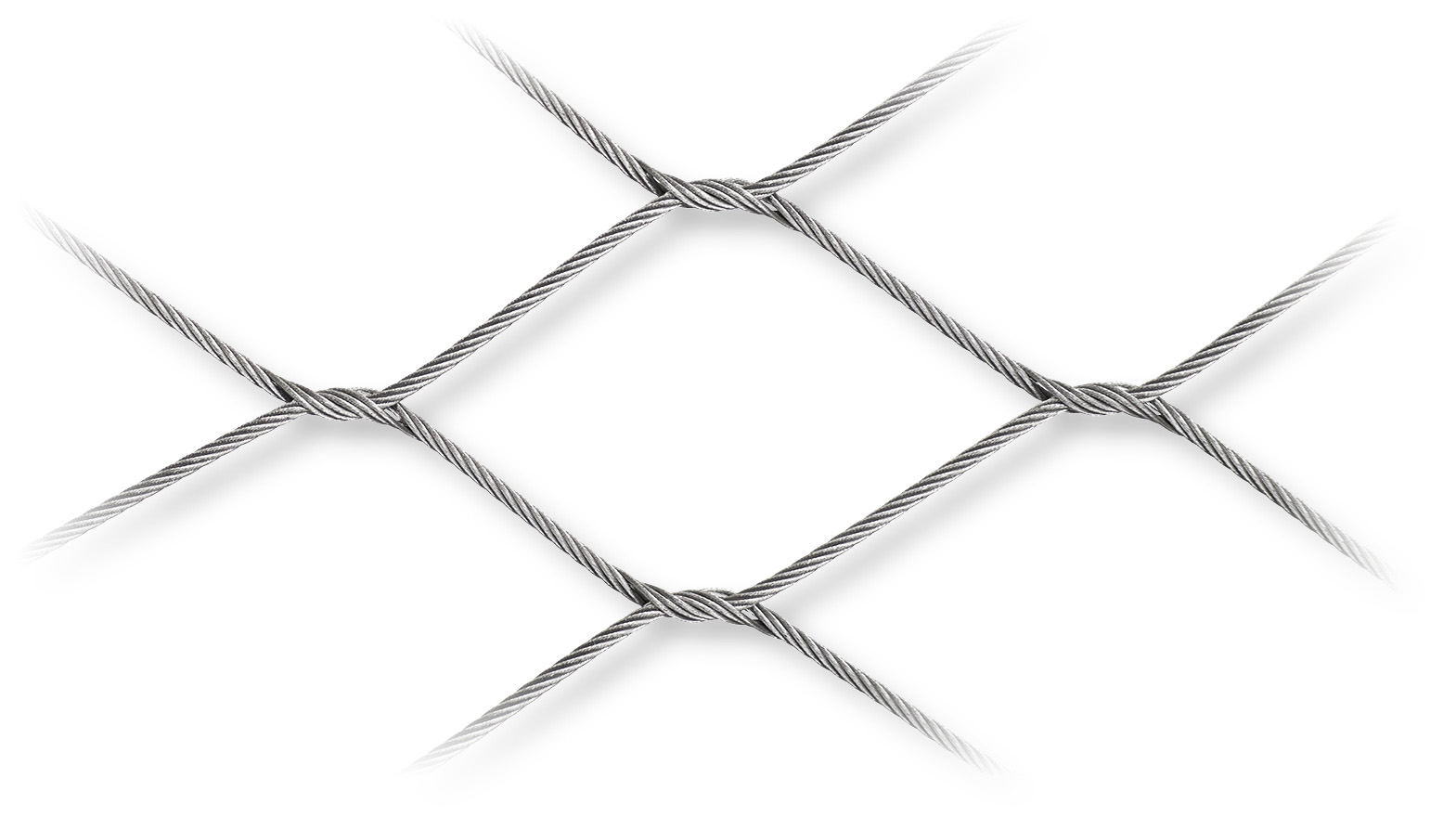

Stainless steel wire rope wove mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

1. Specification List: other specification can be customized.
Material:stainless steel 304, 304L, 316, 316L

cable structures:7 x7, 7 x19

Wire diameter: 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 3.2mm 4.0mm 5.0mm 6.0mm etc.

Mesh aperture: 25*25mm 30*30mm 35*35mm 40*40mm 50*50mm 60*60mm 80*80mm 100*100mm etc.

Height: general 0.5-20meter

Length: general 0.5-30meter

Shape: There are irregular shape, triangle parallelogram trapezoid etc.

Item No.s Cable Diameter

Mesh Opening Size

(W×H)

 Normal Break
inch mm inch mm ibs.
YT-3212W 1/8 3.2 4.75×4.75 120×120 1,600
YT-3210W 1/8 3.2 4×4 102×102 1,600
YT-3290W 1/8 3.2 3.55×3.55 90×90 1,600
YT-3276W 1/8 3.2 3×3 76×76 1,600
YT-3250W 1/8 3.2 2×2 51×51 1,600
YT-2410W 3/32 2.4 4×4 102×102 920
YT-2490W 3/32 2.4 3.55×3.55 90×90 920
YT-2476W 3/32 2.4 3×3 76×76 920
YT-2460W 3/32 2.4 2.4×2.4 60×60 920
YT-2450W 3/32 2.4 2×2 51×51 920
YT-2076W 5/64 2.0 3×3 76×76 676
YT-2060W 5/64 2.0 2.4×2.4 60×60 676
YT-2050W 5/64 2.0 2 51×51 676
YT-2038W 5/64 2.0 1-1/2×1-1/2 38×38 676
YT-1676W 1/16 1.6 3×3 76×76 480
YT-1650W 1/16 1.6 2×2 51×51 480
YT-1638W 1/16 1.6 1-1/2×1-1/2 38×38 480
YT-1630W 1/16 1.6 1.2×1.2 30×30 480
YT-1625W 1/16 1.6 1×1 25.4×25.4 480
YT-1238W 3/64 1.2 1-1/2×1-1/2 38×38 270
YT-1230W 3/64 1.2 1.2×1.2 30×30 270
YT-1225W 3/64 1.2 1×1 25.4×25.4 270
YT-1220W 3/64 1.2 4/5×4/5 20×20 270

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

2. Rope mesh has the following characteristics:

1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors
a good view of sight.
2. Flexibility: the smooth mesh surface can get in close contact with animal's fur and feather without damaging
them and meanwhile
guarantees enough tensile strength.
3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo's operating costs. One-time investment provides permanent use-its comprehensive profits outperform other competitive products greatly.
4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

3. Accessory:

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

4. Application:

It can also used in the following areas: stair railing,balustrade infill, architectural surface plant climbing net, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential,Sports Fence, Etc.

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection

Anping Yuntong Metal Wire Mesh Co., Ltd. is an exporter and manufacturer of series wire mesh and industrial wire. Our company's main products: various materials, fencing wire mesh, zoo mesh, rope mesh, aviary mesh,metal curtain,aluminum decorative mesh. Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and some Southeast Asian countries and regions. We have established long-term and friendly relationships with suppliers, and got trust from users at home and abroad.

High Tensile Stainless Steel Woven Rope Mesh For Architectural Safety Protection
