Sus 304 316 Flexible Stainless Steel Cable Mesh Ferrule Type 70x70mm Hole

SUS 304 316 ferrule type stainless steel wire rope mesh grid for stair railing with 2.0 mm wire 70*70 mm hole

1. Specification:

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.

The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

Height: general 0.5-30meter

Length: general 0.5-30mete

Flexible Stainless Steel Cable Mesh(Ferrule Type)
Item No.s	Cable Diameter		Mesh Opening Size (W×H)		Normal Break
	inch	mm	inch	mm	ibs.
YT-3212F	1/8	3.2	4.75×8.23	120×207.8	1,600
YT-3210F	1/8	3.2	4×6.9	102×176.7	1,600
YT-3211F	1/8	3.2	3.5×6.15	90×156	1,600
YT-3212F	1/8	3.2	3×5.2	76×131.6	1,600
YT-3213F	1/8	3.2	2×3.46	51×88.3	1,600
YT-3214F	3/32	2.4	4×6.9	102×176.7	920
YT-3215F	3/32	2.4	3.55×6.15	90×156	920
YT-3216F	3/32	2.4	3×5.2	76×131.6	920
YT-3217F	3/32	2.4	2.4×4.16	60×104	920
YT-3218F	3/32	2.4	2×3.46	51×88.3	920
YT-3219F	5/64	2.0	3×5.2	76×131.6	676
YT-3220F	5/64	2.0	2.4×4.16	60×104	676
YT-3221F	5/64	2.0	2×3.46	51×88.3	676
YT-3222F	5/64	2.0	1-1/2×2.6	38×65.8	676
YT-3223F	1/16	1.6	1.2×2.08	76×131.6	480
YT-3224F	1/16	1.6	2×3.46	51×88.3	480
YT-3225F	1/16	1.6	1-1/2×2.6	38×65.8	480
YT-3226F	1/16	1.6	1.2×2.08	30×52	480
YT-3227F	1/16	1.6	1×1.73	25.4×44	480
YT-3228F	3/64	1.2	1-1/2×2.6	38×65.8	270
YT-3229F	3/64	1.2	1.2×2.08	30×52	270
YT-3230F	3/64	1.2	1×1.73	25.4×44	270
YT-3231F	3/64	1.2	4/5×1.39	20×34.6	270

2. cable structures and type

3. Advantage:

1.The netting is clipped to the cable,

2. The mesh size and diameter can be modified

3. It can be made to customer orders and statically tested – especially suitable for facades

4. High strength, strong toughness, free-angles curving and fold, easy for transportation and
installment.
5. Anti-corrosive, resist the rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8. without toxic material, safety, environmental protection.

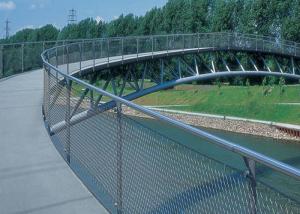

4.Application: It is widely used in: Animal Enclosure mesh, animal cages, bird netting, Agriculture,Residential,Sports, stairway and Fall Security, Etc.
